Features
BAK4 prism
Precision Measurement
Scan Ranging
Full HD (Full High- Definition)
Multi – layer Broadband Coating
Magnesium Alloy Body
Applications
Videos
Specifications

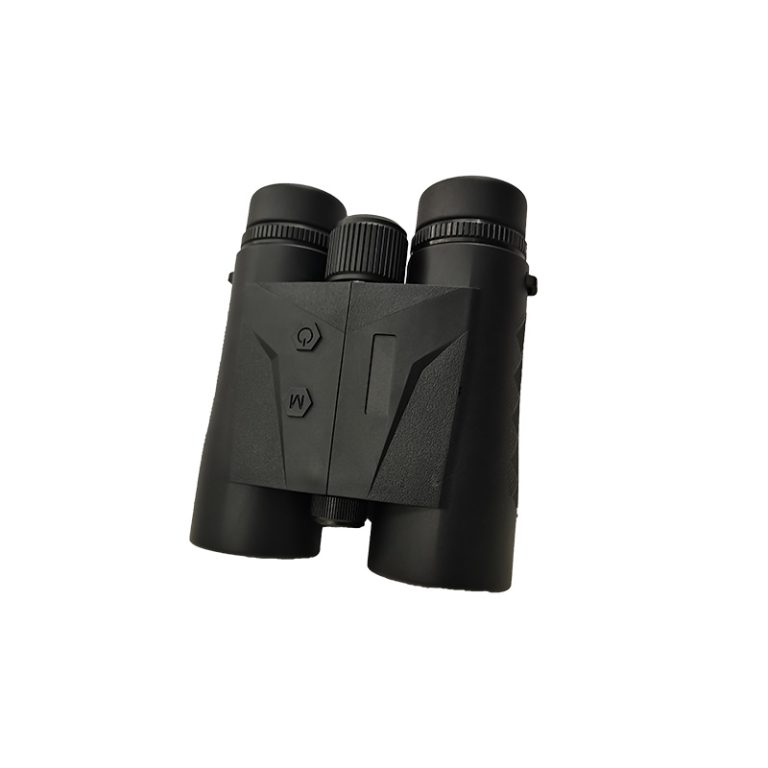

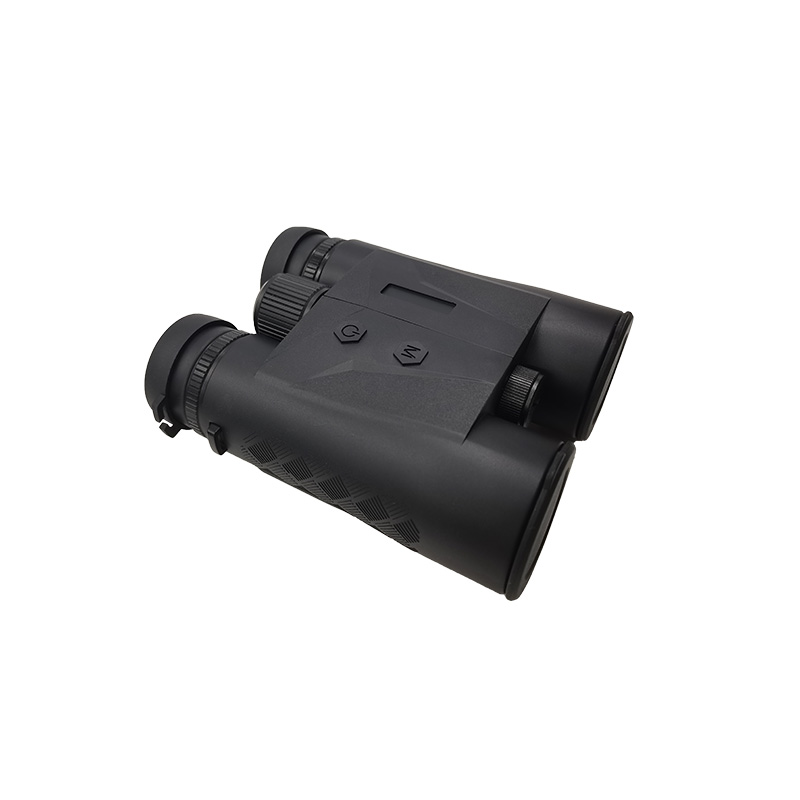

| Name | Laser rangefinding binoculars |
| Model | 10×42 ED |
| Magnification | 10× |
| Eyepiece aperture 21mm | 21mm |
| Objective lens aperture | 42mm |
| Field of view | 6.1°106.9m @ 1000m320.6ft @ 1000yds |
| Minimum focusing distance | 3m /9.8ft |
| Range | 1800m（Gray House1300m，Tree1400m，Deer1500m） |
| Exit pupil diameter | 4.25mm |
| Eixt pupil distance | 14.9mm |
| Relative brightness | 18.06 |
| Twilight factor | 20.49 |
| Prism materials | BAK4 |
| Laser wavelength | 905m |
| Laser emission power | ＜1mW |
| Laser Class | Class I |
| Distance measurement display | Bright black LCD display |
| Ranging accuracy | ±0.5m |
| Angle | ±90° |
| Waterproof level | IP67 |

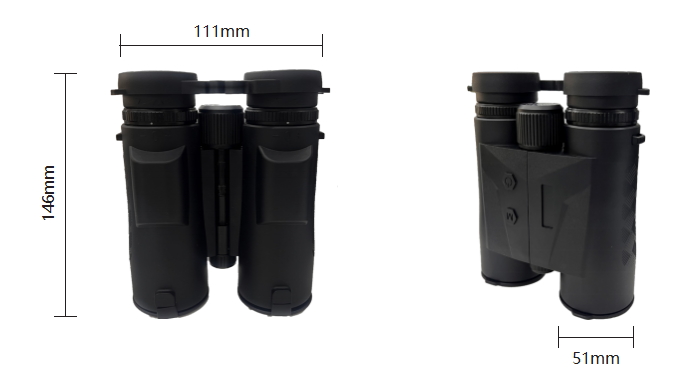

| Dimensions | 146×111×51mm |
| Weight | 790g |
| Battery modle | CR2 |
| Operation temperature | -20℃～50℃ |

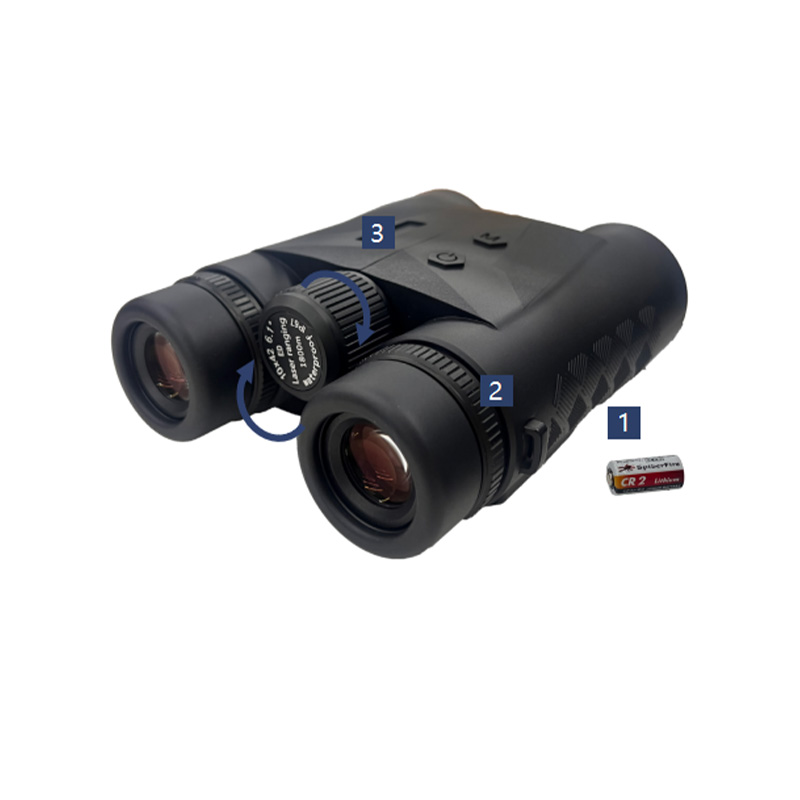

How To Use
STEP1. Install Battery
Open the battery cover and insert a CR2 battery, noting the positive and negative poles.
If a low battery prompt (e.g., “LOW” or a flashing battery icon) appears on the screen after powering on, replace the battery promptly. Replace the CR2 battery at least once a year as recommended.
STEP2. Adjust Eyecups
Without Eyeglasses: Fully twist up the eyecups to
ensure a complete field of view.
With Eyeglasses: Twist down the eyecups to reduce the distance between eyes and eyepieces, preventing view obstruction.
STEP3. Adjust Interpupillary Distance
Hold both sides of the binoculars and move the barrels left/right to align the centers of the left/right eyepieces with your pupils.
Complete the adjustment when a single, ghost-free image is seen (IPD should match your personal eye spacing).
Recommendations
| Category | Specific Recommendations |
| Storage Environment | Temperature: -20℃ ~50℃Humidity: Avoid high humidity; use desiccant when storingLocation: Keep in a dry, ventilated place, away from direct sunlight and chemicalsvv |
| Lens Maintenance | Cleaning: Gently wipe with a lens pen or dust-free cloth; use specialized cleaning solution for stainsProtection: Cover lenses with lens caps when not inuseTaboos: Do not touch lenses with hands; never observethe sun |
| Battery Mangement | Model: CR2 batteryReplacement: Replace at least once every 12 monthsLong-term storage: Remove batteries to prevent leakage |
| Component Adjust | Eyecups: Fully extend when not wearing glasses; twist down when wearing glassesInterpupillary Distance: Adjust until left and right images overlap without shadows |
| Function Maintenance | Ranging Mode: Auto power off after 8 seconds in single ranging mode; long-press the On/Range button to shut down at any timeUnit Switch: Long-press the Scan button to switchbetween Meters/Yards |
| Special Notes | Waterproof: IP67 rating; avoid prolonged immersionLaser Safety: Do not aim at human eyes; laser class CLASS ⅠCleaning Frequency: Remove dust, dirt, and moisture from lenses promptly to prevent reduced light transmittance and ranging accuracy |
